How to Choose the Right 5-Axis Machining Center

Understanding 5-Axis Machining Centers

A 5 axis milling center differs from traditional 3-axis machines by allowing the cutting tool or workpiece to move along five axes simultaneously. This capability enables machining of complex geometries, angled surfaces, undercuts, and intricate components in a single setup.

A 5 axis vertical machining center typically features a vertically oriented spindle and a rotary table, making it ideal for precision parts that require multiple angles and faces to be machined. The SP5MC-T2 integrates these features with advanced technology for reliable and efficient production.

Key Features of SP5MC-T2 5-Axis Machining Center

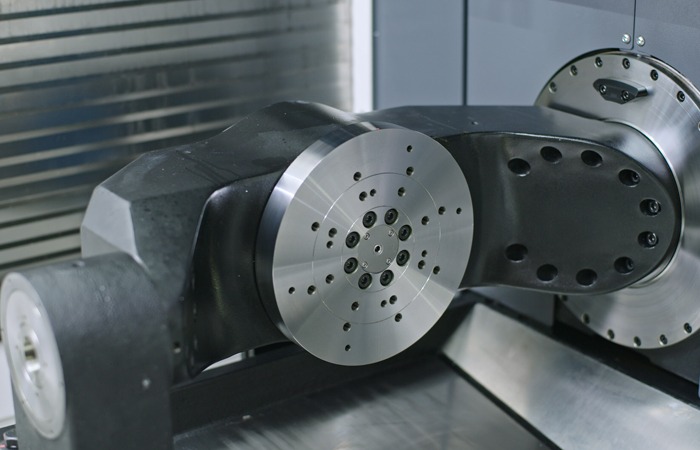

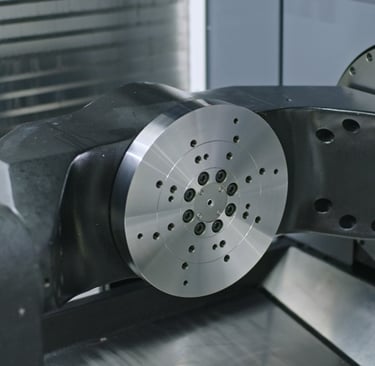

1. DD Direct Drive High-Speed Rotary Table

The SP5MC-T2 is equipped with a DD direct drive high-speed rotary table, providing accurate and reliable positioning. This ensures high-quality processing and reduces errors caused by backlash or mechanical wear. The precision of the rotary table is essential for multi-angle machining, making it a core feature of any high-performance 5 axis CNC Machining Center.

2. High Moving Speed

The machine boasts high moving speed, which effectively shortens non-cutting time during production. By reducing idle motion, the SP5MC-T2 achieves efficient batch machining, allowing manufacturers to produce complex parts faster and with greater throughput.

3. Brand-New Machine Structure Design

With a new machine structure design, the SP5MC-T2 offers more stable performance, high rigidity, and reliability. Its robust construction minimizes vibration during high-speed operations, maintaining tight tolerances even under heavy-duty machining conditions. This stability is crucial for precision tasks in aerospace, automotive, and mold-making applications.

4. Humanized Outer Design

The SP5MC-T2 features a high-end all-in-one outer design, which reduces the floor area while providing a more ergonomic interface. The machine’s operation and management systems are designed with human factors in mind, ensuring convenient operation, simplified workflow, and reduced operator fatigue. This makes it a standout among 5 axis milling centers that prioritize both performance and usability.

5. Box-Type Z-Axis Structure

The machine adopts a box-type Z-axis structure, enhancing dynamic performance and rigidity. This design ensures stable vertical movement, maintaining precision during high-speed cutting and complex multi-axis operations. The box-type Z-axis is particularly beneficial for maintaining accuracy when machining tall or heavy workpieces.

6. Servo Tool Changing System

Equipped with a tool magazine and servo tool changing system, the SP5MC-T2 allows fast and reliable tool changes. This capability reduces downtime and enables continuous operation, which is essential for high-volume production environments.

Technical Specifications

X/Y/Z Travel: 500/500/300 mm

Max Workpiece Diameter: φ450 mm

Max Workpiece Height: 300 mm

Max Load of Worktable: 0° 50 kg, 90° 30 kg

Machine Net Dimension:

2120×2400×2360 mm (Circular type tool magazine)

2150×2400×2360 mm (Chain type tool magazine)

Machine Net Weight: 5000 kg

These specifications demonstrate that the SP5MC-T2 is suitable for machining medium-sized, complex parts with high precision, offering both stability and versatility.

Advantages of SP5MC-T2 5-Axis Machining Center

Reduced Setup Time: With 5-axis capability, multiple faces and angles can be machined in a single setup, reducing repositioning errors and saving time.

High-Precision Machining: The DD direct drive rotary table and rigid box-type Z-axis ensure tight tolerances and high-quality surface finishes.

High Efficiency: Fast moving speeds and servo tool changing system minimize idle time and increase production efficiency.

Flexibility: Whether used as a 5 axis vertical machining center or a general-purpose 5 axis milling center, the SP5MC-T2 can handle a wide range of materials and part geometries.

Operator-Friendly: Ergonomic design and humanized interface simplify operation, even for complex parts or long production runs.

Applications

The SP5MC-T2 is widely used in industries that demand complex and precise components:

Aerospace: Machining aluminum, titanium, and high-strength alloys for aircraft components.

Automotive: Engine blocks, transmission components, molds, and body parts.

Medical Devices: Surgical instruments, implants, and prosthetics.

Mold and Die Making: High-precision molds and dies with complex geometries.

General Metal Fabrication: Customized parts for industrial machinery and equipment.

The combination of 5 axis cnc machining center technology, high-speed rotary tables, and rigid machine construction ensures that manufacturers can produce highly accurate parts efficiently.

Tips for Choosing the Right 5-Axis Machining Center

When selecting a 5 axis milling center, manufacturers should consider:

Machine Accuracy and Stability: Look for machines with high rigidity and precise rotary tables. The SP5MC-T2 provides both with its DD direct drive system and box-type Z-axis.

Speed and Efficiency: High-speed moving components and fast tool-changing systems reduce non-cutting time, improving production efficiency.

Operator Comfort: Ergonomic controls and humanized interfaces enhance usability, reduce fatigue, and improve workflow.

Flexibility: Ensure the machine can handle your range of materials and workpiece sizes

Maintenance and Reliability: Isolated moving components and robust construction reduce downtime and extend the machine’s service life.

By carefully evaluating these factors, manufacturers can select a 5 axis vertical machining center or 5 axis milling center that fits their production needs.

Conclusion

The SP5MC-T2 5-Axis Machining Center represents a cutting-edge solution for modern manufacturers seeking precision, speed, and flexibility. With features such as DD direct drive high-speed rotary tables, box-type Z-axis structure, servo tool-changing system, and ergonomic all-in-one design, this machine delivers exceptional performance for complex parts across a variety of industries.

Whether you are looking for a 5 axis cnc machining center, 5 axis milling center, or 5 axis vertical machining center, the SP5MC-T2 offers high-speed, high-accuracy, and operator-friendly solutions to meet demanding production requirements. By investing in advanced 5-axis technology, manufacturers can achieve higher productivity, tighter tolerances, and better overall efficiency in their machining operations.
