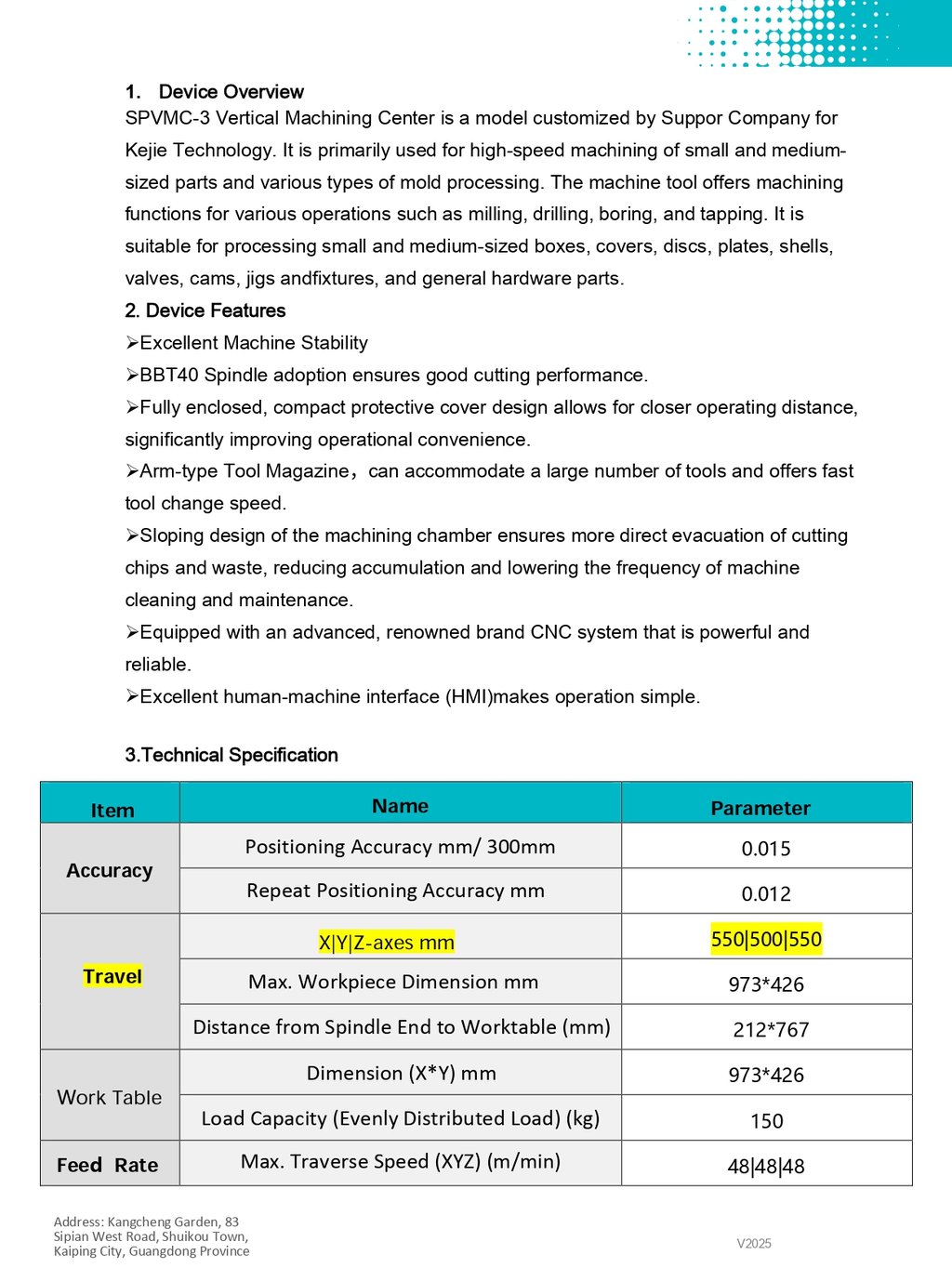

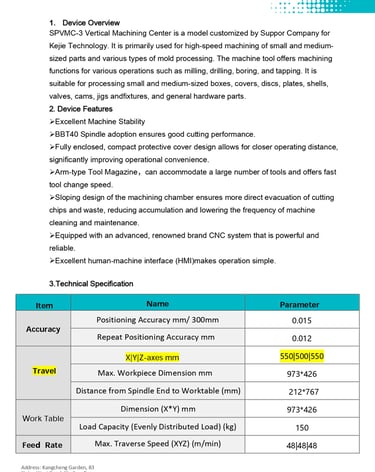

1. Equipment Overview

The SPVMC-3 vertical machining centre is a customised model commissioned by Subei Company from Kejie Technology. Primarily designed for high-speed machining of small to medium-sized components and various moulds, this machine tool integrates multiple processing functions including milling, drilling, boring, and tapping. It is suitable for machining small to medium-sized enclosures, covers, discs, plates, housings, valves, cams, fixtures, and hardware components.

2. Equipment Features

• Excellent machine tool stability

• BBT40 spindle for superior cutting performance

• Fully enclosed compact external guard design with closer operating distance, significantly enhancing operational convenience

• Tool arm-type magazine accommodates high tool capacity with rapid changeover

• Angled machining chamber facilitates direct chip evacuation, minimising accumulation and reducing internal cleaning frequency

• Advanced, renowned brand CNC system delivering robust functionality and reliability

• Intuitive human-machine interface ensuring straightforward operation

SPVMC-3-Vertical Machining Center
