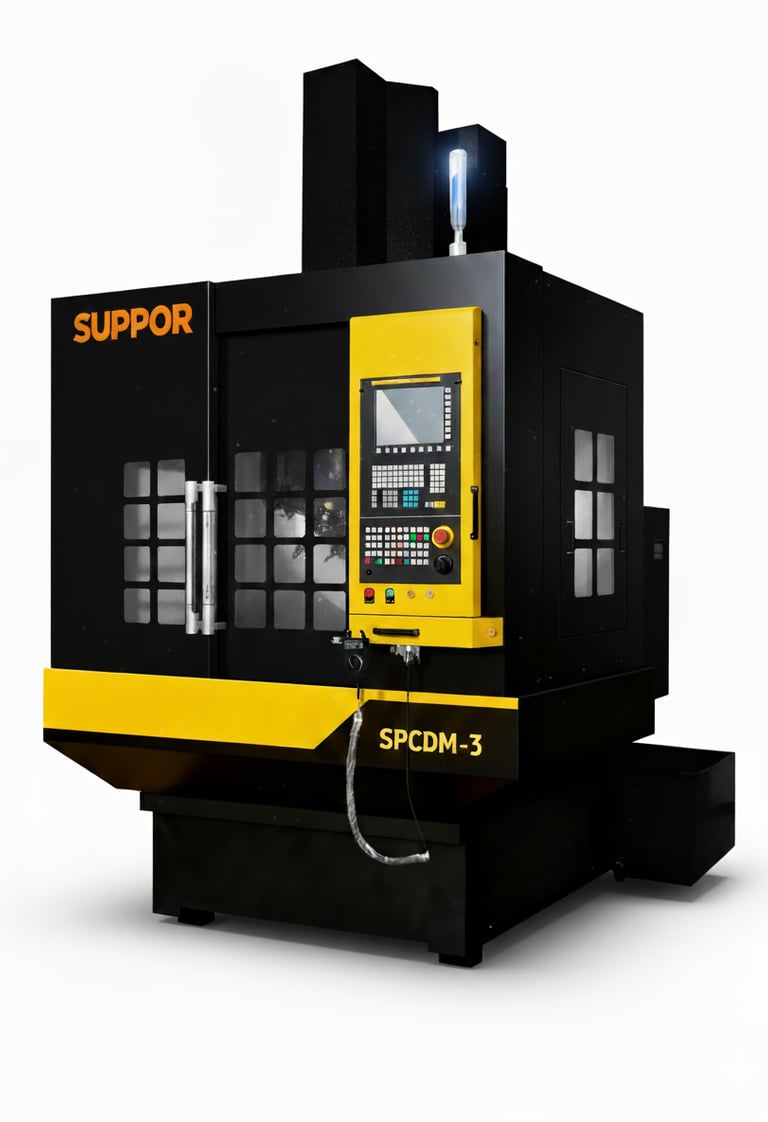

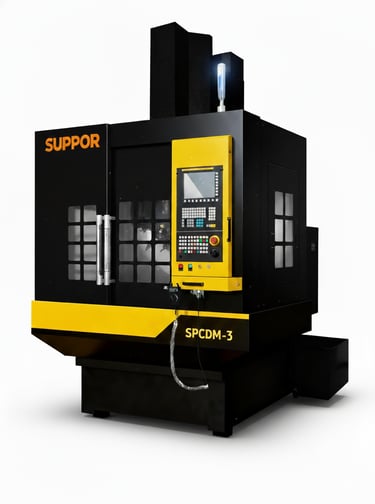

SPCDM-3 Vertical Machining Center

1. Equipment Overview

The SPVMC-3 vertical machining centre is a customised model developed by Shuobo Company in collaboration with SUPPOR Technology. Primarily designed for high-speed machining of small to medium-sized components and various moulds, this machine integrates multiple processing functions including milling, drilling, boring, and tapping. It is suitable for machining small to medium-sized enclosures, covers, discs, plates, housings, valves, cams, fixtures, and hardware components.

2. Equipment Features

• Excellent machine stability

• BBT40 spindle for superior cutting performance

• Fully enclosed compact external guard design with closer operating distance, significantly enhancing operational convenience

• Tool arm-type magazine accommodates high tool capacity with rapid changeover

• Angled machining chamber facilitates direct chip evacuation, minimising accumulation and reducing internal cleaning frequency

• Advanced, renowned brand CNC system delivering robust functionality and reliability

• Intuitive human-machine interface for straightforward operation

• Fast Cutting High Rigidity Large-torque

• Component mass production in the industries of automotive accessories,aviation and aerospace,3C products,industrial automation,communication,etc

• copper,aluminum,castingiron, steel,stainless steel, etc

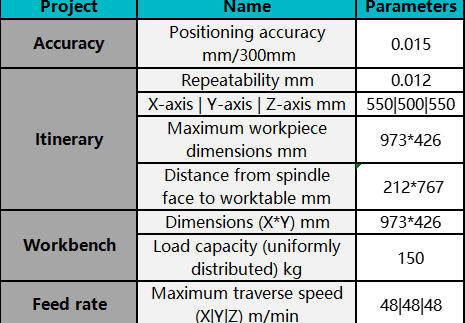

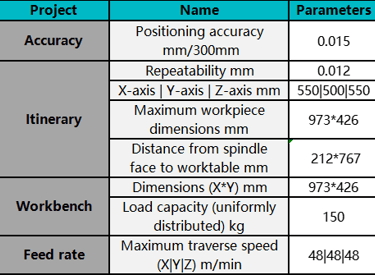

Specifications
